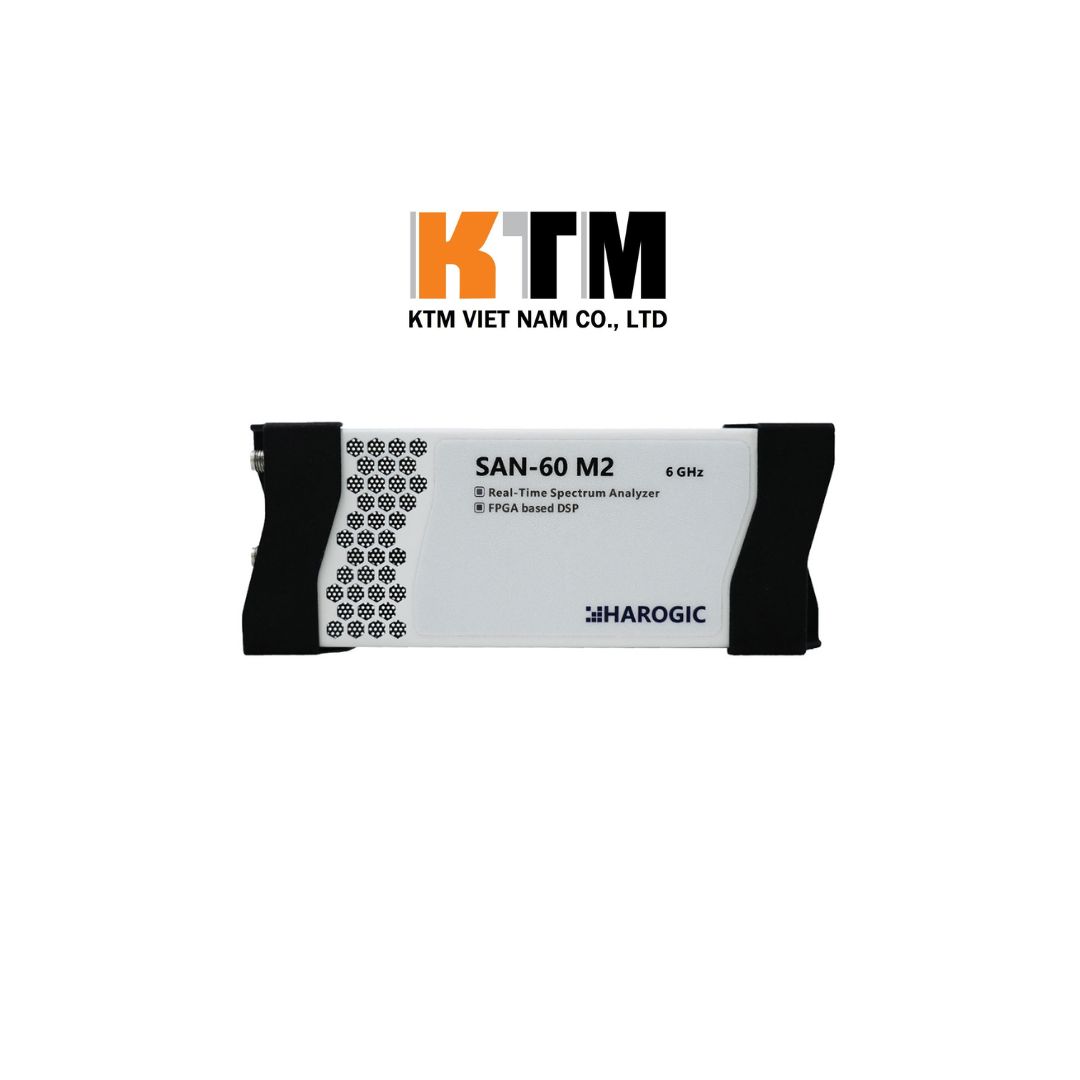

Model: SAN-60 M2
Hãng sản xuất: Harogic
Main features:
- Outstanding device performance and price advantage
- 9 kHz~6.3 GHz real-time spectrum analyzer
- Integrated 100 kHz-6.3 GHz analog signal generator (option)
- 25 MHz analysis bandwidth, 100 GHz/s sweep speed, FPGA signal processing
- Typical phase noise: 1GHz carrier -110 dBc/Hz@10 kHz
- Standard preamplifier, DANL: -162 dBm/Hz
- Core module supported, light as 168 g, 142x54x16 mm, power consumption 7~10 W
- Highly compatible API interfaces (HTRA API)and SAStudio4 GUI
- Compatible with ARM and x86 processors, Linux and Windows operating systems
- Operating temperatures range from – 20 ℃/- 40 ℃ to 65 ℃ (opt.)
- Built-in OCXO (option), temperature drift≤0.15 ppm

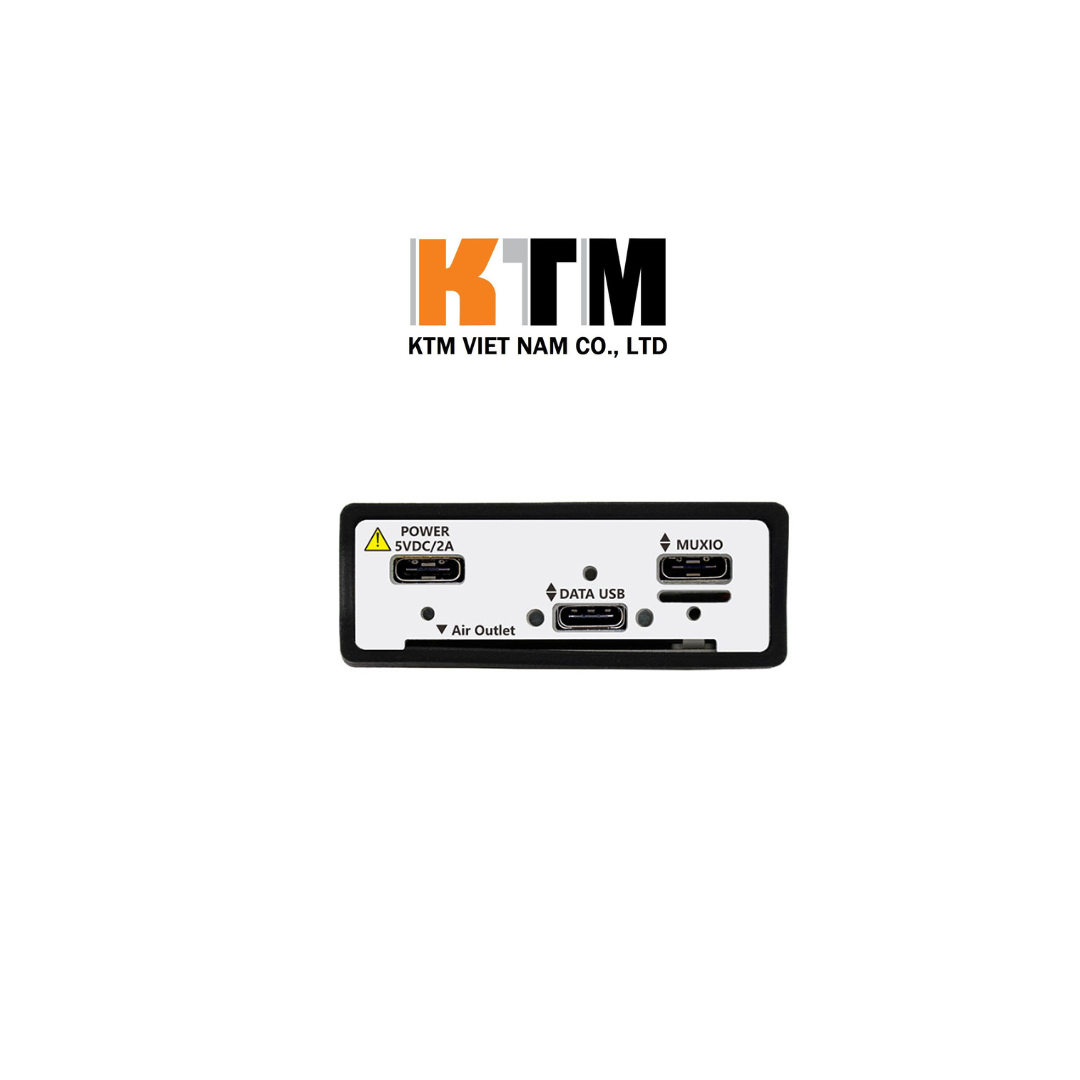

- USB3.0/2.0 Type-C interface
